Chrysler V8-361, 383, 400, 426 & 440 C.I.D.
All models 1959 & later: Log style direct replacement

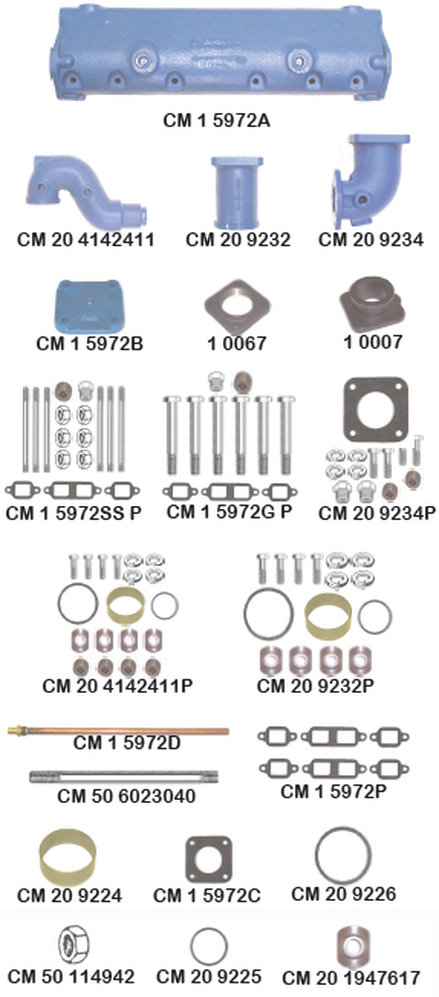

| Part Number | Description |
|---|---|
| CM-1-5972A | Direct replacement water cooled manifold for big block Chrysler. |
| CM-20-4142411 | Exhaust riser / upper elbow. Direct replacement for Chrysler part numbers 3745639, 2847623, 2847404 and E9233M. |
| CM-20-9232 | 6" exhaust elbow high riser extention. Direct replacement for Chrysler part number E9232M. |
| CM-20-9234 | Exhaust riser lower elbow. Direct replacement for Chrysler part number E9234M.1-0007. Adaptor for rear end of manifold. Use with Barr style exhaust risers or elbow connectors. |
| 1-0067 | 2-1/2" N.P.T. threaded exhaust end plate. |
| CM-1-5972B | Direct replacement front end plate. |
| CM-1-5972C | End plate gasket, two (2) required per manifold. |
| CM-1-5972D | Copper water distribution tube. Replaces original tube where used. |
| CM-1-5972G-P | Manifold to cylinder head mounting kit (includes bolts, manifold to head gaskets and brass drain plug). |
| CM-1-5972P | Manifold to cylinder head mounting gasket set. |
| CM-1-5972SS-P | Manifold to cylinder head mounting kit (includes stainless steel studs and nuts, manifold to head gaskets and brass drain plugs). |
| CM-20-1947617 | Exhaust elbow extension retainer. |
| CM-20-4142411P | Mounting kit for upper riser/elbow (includes sleeve, O-rings, retainers, bolts and pipe plugs). |
| CM-20-9224 | Exhaust elbow to extension seal retainer sleeve. |
| CM-20-9225 | Exhaust elbow to extension inner seal. |
| CM-20-9226 | Exhaust elbow to extension outer seal. |
| CM-20-9232P | Mounting kit for 6" extension (includes sleeve, O-rings, clamps and bolts). |
| CM-20-9234P | mounting kit for lower elbow riser (includes bolts, gasket and pipe plugs). |
| CM-50-114942 | Stainless steel exhaust manifold stud nut. |
| CM-50-5023040 | Stainless steel exhaust manifold stud. |
Note
Manifold includes gaskets and plugs. Swivel-style connector packages must be purchased seperate for the corresponding riser / elbows. Manifold mounting hardware must be purchased seperately.
