Interceptor V8-352, 390 & 427 C.I.D.
Models 240, 250, 260, 285, & 300 HP: Log style generic

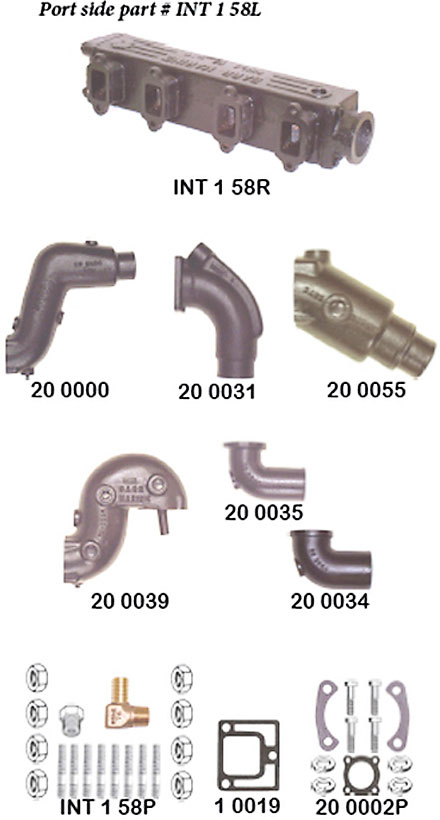

| Part Number | Description |
|---|---|
| INT-1-58L | Water cooled exhaust manifold (port) for the Ford engine. Use with Barr risers and connectors. The original Interceptor exhaust connectors are not applicable to the Barr manifolds. |
| INT-1-58R | Water cooled exhaust manifold (starboard) for the Ford engine. Use with Barr risers and connectors. The original Interceptor exhaust connectors are not applicable to the Barr manifolds. |
| 1-0019 | End plate gasket (will fit both ends). |
| INT-1-58P | Manifold to cylinder head mounting kit. |
| 20-0000 | Swivel-type high discharge exhaust riser; 8-1/2" riser protection. Requires one (1) mounting hardware kit 20-0002P per riser. Use only with 2-7/8" to 3" I.D. exhasut hose. |
| 20-0002P | Mounting hardware kit (Barr style riser/elbows only). |
| 20-0031 | Swivel-type 90-degree exhaust elbow connector with internal water discharge. Accepts 2-1/2" to 3" I.D. exhaust hose. Requires one (1) mounting hardware kit 20-0002P per elbow. |
| 20-0034 or 20-0035 | Exhaust connector 20-0035 (for 2-1/2" I.D. exhaust hose) or exhaust connector 20-0034 (for 3" I.D. exhaust hose). Connects to 20-0039 using one (1) 20-0002P per connector. |
| 20-0039 | Fully jacketed swivel-type exhaust riser; 7" riser protection. Requires two (2) mounting hardware kits 20-0002P one (1) kit to mount riser to manifold and one (1) kit to mount elbows 20-0034 or 20-0035 to riser. |
| 20-0055 | Swivel-type 30-degree exhaust elbow connector; fully jacketed. Accepts 2-1/2" or 3" I.D. exhaust hose. Requires one (1) mounting hardware kit 20-0002P per elbow. |
The center riser is a two-piece aluminum manifold/riser ideally suited for replacement use where riser protection is required. The Barr center riser aluminum manifold/riser uses flexible exhaust hose which facilitates connection to existing exhaust lines.
All elbows (cast iron) can swivel inboard or outboard for perfect fit. The Barr center riser aluminum manifold/riser is designed to limit back presure on the engine, resulting in more efficient engine performance. The manifold and riser can be reversed and will fit either side of the engine.
The Barr center riser aluminum manifold/riser is cast of 356 T6 aluminum, well suited for fresh water marine applications. Barr Marine's center riser aluminum manifold/riser come with a one year warranty. However, Barr Marine By EDM does not recommend use of this product in salt water applications and does not warrant this product in salt water due to extreme corrosion.
