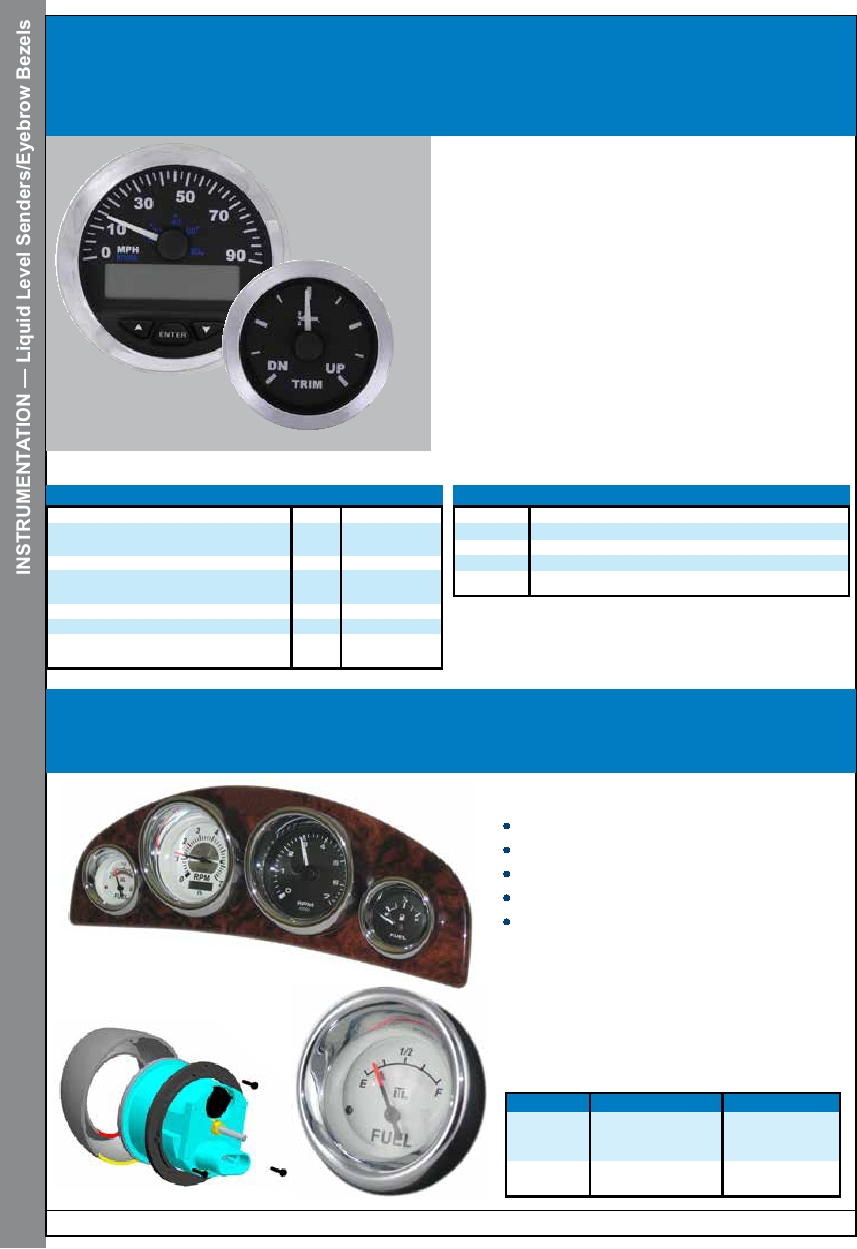

MatrIX GauGes -- The Matrix gauge set is intended to operate on Mercury SmartCraft engines (max 4 engines/2
stations) utilizing the SmartCraft� protocol. The gauges operate on 12 volt systems and support single, dual, triple or
quad engine applications. In a Matrix gauge set, the 3" tachometer is the master and connects directly to the SmartCraft
data bus. All other gauges are slaves and connect to the tachometer RS-485 private bus (immune to electrical noise,
more robust and reliable). The tachometer reads SmartCraft engine parameters and forwards them on the private bus
for the slave gauges.
b
Features:
� Smart Tachometer CANbus driven
� All 2" gauges receive data from tachometers
� LCD on Tachometer and Speedo displays
all available data and alarms
� IP67 waterproof/ submersible housings
(with Connector fitted)
� Dry Nitrogen filled to minimize fogging
� LED dimmable, automotive style backlighting (red)
� CANbus connectivity
seLeCtION GuIDe:
GAUGE DESCRIPTION
SIZE
PART NO.
PART NO.
Description
Speedometer w/ LCD US 90 MPH
3"
Harness - Tachometer to Smartcraft, 30"
Fuel Primary
2"
Harness - Tachometer to NMEA 2000, 30"
2"
Harness - Tachometer to Speedometer, 48"
Fuel Secondary
Voltmeter 10 - 16 VDC
2"
Terminator - Needed when no speedo is used
2"
Harness - Any 2" gauge to another, 8"
Temperature 240F
Water pressure 40 PSI
2"
Oil Pressure 80 PSI
2"
2"
Trim
Tachometer - Smartcraft
3"
Tachometer - NEMA 2000
3"
eYeBrOW BeZeLs -- Teleflex Eyebrow Bezels give any boat that sporty race boat look. Durable and corrosion
proof these chrome plated bezels attach directly to the gauge. The bezels can be rotated to any angle allowing you to
customize the look of your dash.
Features:
Directly attach to the gauge.
No extra holes to drill.
Can be set at any angle.
Corrosion proof ABC/PVC construction.
Buy individually or in 4 or 6 gauge sets.
seLeCtION GuIDe:
PART NO.
DESCRIPTION
NOTE
2" Eyebrow Bezel
3" Eyebrow Bezel
5" Eyebrow Bezel
4 Bezel Kit
For 4 gauge kit
6 Bezel Kit
For 6 gauge kit
4
All gauge products are only available in North America!
