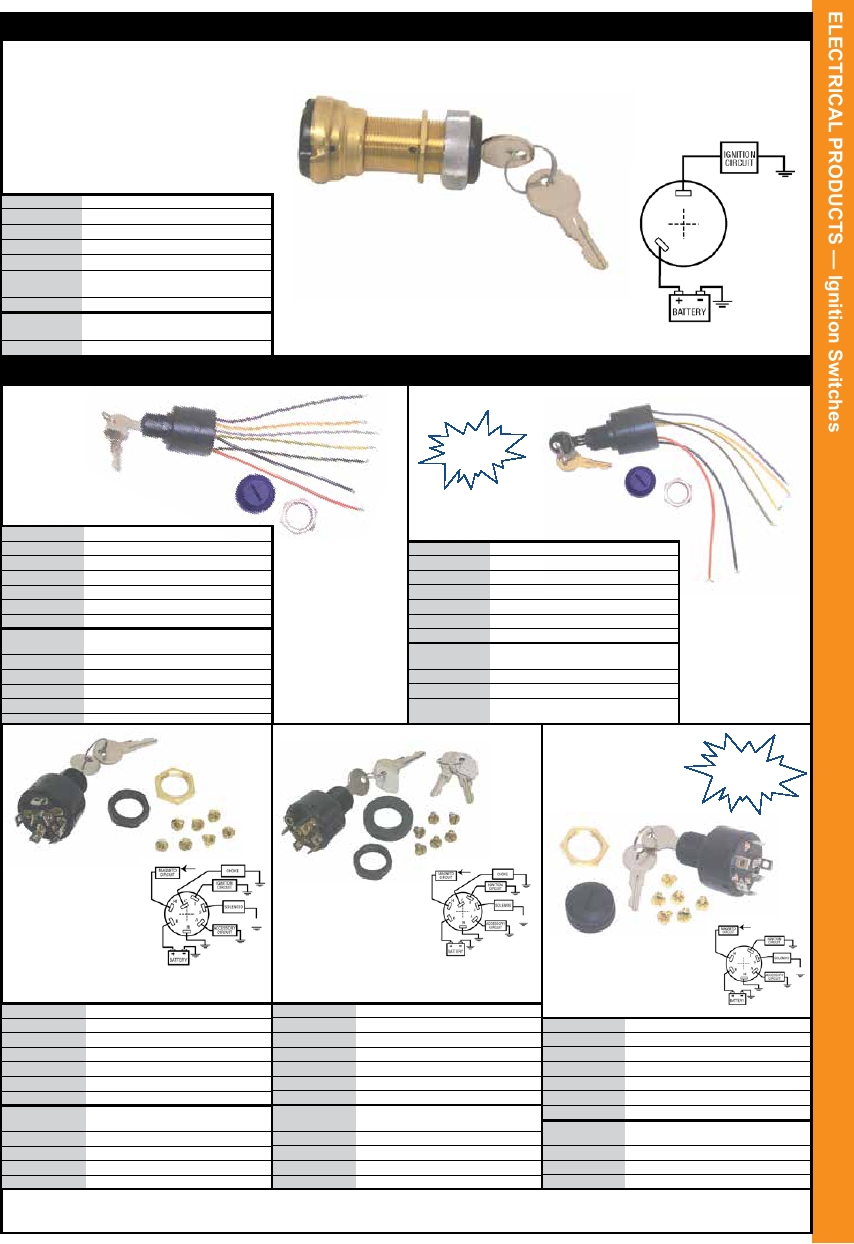

Sierra Marine Parts Catalog
2 POSITION CONvENTIONAL � OFF � ON � USE WITH SEPARATE STARTER BUTTON
MP39820-1 � INDIvIDUAL BOX
MP39822-1 � BULK 100 PCS/CTN
DeSCrIpTIoN
Material
Brass
Length
Long: 1 1/8" maximum panel thickness
Terminal Type
2 Screw Terminal
Back Up Nut
Brass
Face Nut
Knurled Chrome plated
w/rubber cap
Hole Size
7/8"
rated;
Ignition
15 Amp @ 12v DC
4 POSITION MAGNETO � ACCESSORY � OFF � RUN � START
oard
For Outb ithout
sw
engine circuit
choke
MP39710 - CLAMSHELL
MP39712-1 - BULK 100 PCS
MP39720 - CLAMSHELL
PUSH TO CHOKE
MP39722-1 - BULK 100 PCS
DeSCrIpTIoN
DeSCrIpTIoN
Material
polyester
Material
polyester
Length
Short: 5/8" maximum panel thickness
Length
Short: 5/8" maximum panel thickness
Terminal Type
7 Color Code Wires
Terminal Type
6 Color Code Wires
Back Up Nut
Brass
Back Up Nut
Brass
Face Nut
Knurled black plastic w/rubber cap
Face Nut
Knurled black plastic w/rubber cap
Hole Size
7/8"
Hole Size
7/8"
rated;
rated;
Ignition
15 Amp @ 12 VDV
Ignition
15 Amp @ 12 VDV
Solenoid
30 Amp @ 12 VDC
Solenoid
30 Amp @ 12 VDC
Accessory
15 Amp @ 12 VDC
Accessory
15 Amp @ 12 VDC
Choke
7 Amp @ 12 VDC
For O
engine utboard
s
choke without
circuit
MP41080 � CLAMSHELL
MP41010 � CLAMSHELL
MP41082 � BULK 100 PCS/CTN
MP41012 � BULK 100 PCS/ CTN
PUSH TO CHOKE
PUSH TO CHOKE
MP39730 - CLAMSHELL
MP39732 - BULK 100 PCS
DeSCrIpTIoN
DeSCrIpTIoN
DeSCrIpTIoN
Material
polyester
Material
polyester
Material
polyester
Length
Short: 5/8" maximum panel thickness
Length
Short: 5/8" maximum panel thickness
Length
Short: 5/8" maximum panel thickness
Terminal Type
6 Screw Tab, 1 Boss Screw
Terminal Type
7 Screw Tab
Terminal Type
6 tinned brass screw terminals
Back Up Nut
plastic
Back Up Nut
Brass
Back Up Nut
Brass
Face Nut
Hex black plastic face nut
Face Nut
Hex black plastic face nut
Face Nut
Knurled black plastic w/rubber cap
Hole Size
7/8"
Hole Size
7/8"
Hole Size
7/8"
rated;
rated;
rated;
Ignition
15 Amp @ 12v DC
Ignition
15 Amp @ 12v DC
Ignition
15 Amp @ 12 VDV
Solenoid
30 Amp @ 12v DC
Solenoid
30 Amp @ 12v DC
Solenoid
30 Amp @ 12 VDC
Choke
7 Amp @ 12v DC
Choke
7 Amp @ 12v DC
Accessory
15 Amp @ 12 VDC
Accessory
15 Amp @ 12v DC
Accessory
15 Amp @ 12v DC
Wire color codes
Red - Battery
Yellow w/ Red Stripe - Solenoid
Purple - Ignition
Purple w/ white stripe - Accessory
29
Black - Magneto Ground
Black w/ yellow stripe - Magneto
Yellow w/Black Stripe - Choke
