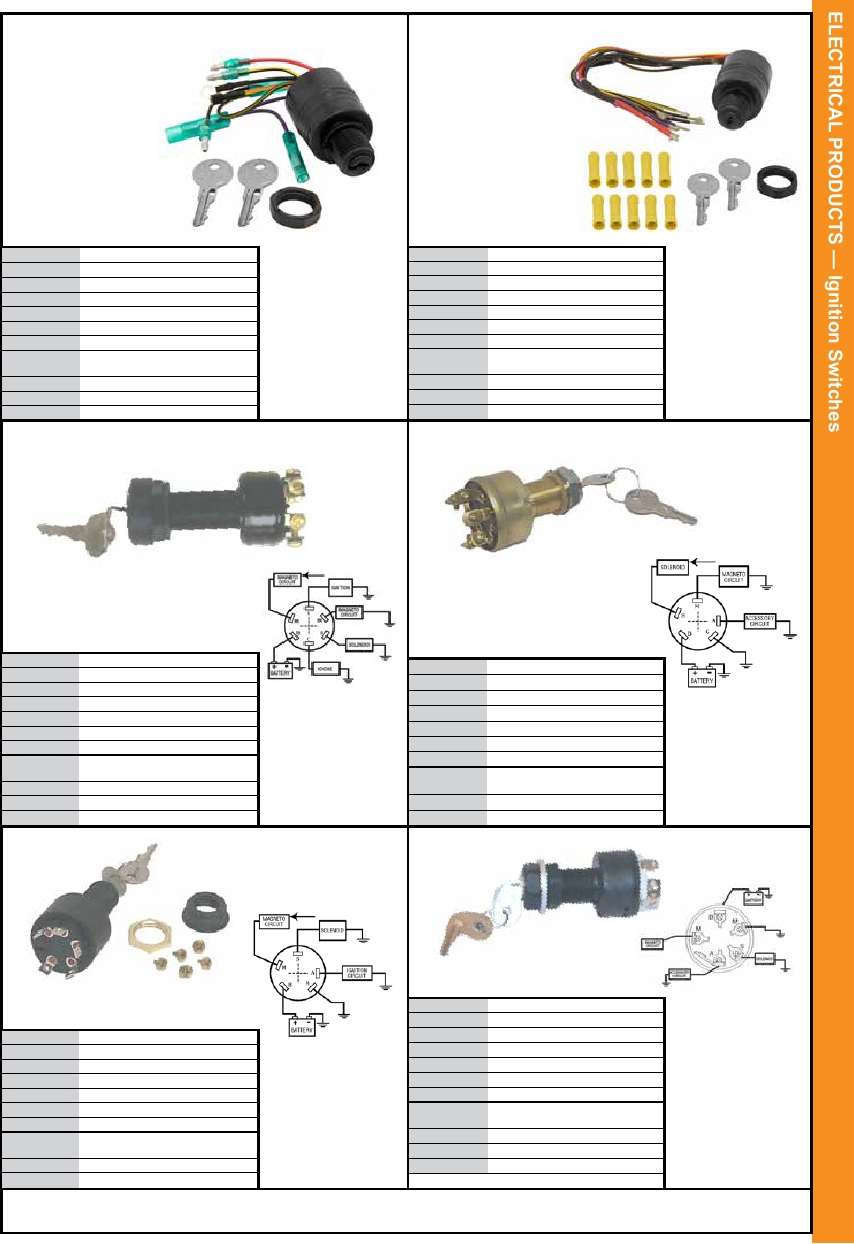

Sierra Marine Parts Catalog
MP52000 - CLAMSHELL
MP51090 - CLAMSHELL
MP52002 - BULK 100 PCS
MP51092 - BULK 100 PCS
PUSH TO CHOKE
PUSH TO CHOKE
DeSCrIpTIoN
DeSCrIpTIoN
Material:
polyester
Material:
polyester
Length:
Short 5/8" maximum panel thickness
Length:
Short 5/8" maximum panel thickness
Terminal Type:
6 Color Coded Wire Leads/potted
Terminal Type:
6 Color Coded Wire Leads/potted
plastic
Back up Nut:
Not required
Back up Nut:
Face Nut:
Hex black plastic face nut
Face Nut:
Hex black plastic face nut
Hole Size:
7/8"
Hole Size:
7/8"
rated;
rated;
Ignition
15 Amp @ 12v DC
Ignition
15 Amp @ 12v DC
Solenoid
30 Amp @ 12v DC
Solenoid
30 Amp @ 12v DC
7 Amp @ 12v DC
Choke
7 Amp @ 12v DC
Choke
MP39090 � CLAMSHELL
MP39092 � BULK 100 PCS/CTN
MP39040 � CLAMSHELL
PUSH TO CHOKE
MP39042 � BULK 100 PCS/CTN
DeSCrIpTIoN
DeSCrIpTIoN
Material
polyester
Material
Brass
Length
Long: 1 1/8" maximum panel thickness
Long: 1 1/8" maximum panel thickness
Length
Terminal Type
6 Screw Tab
Terminal Type
5 Screw Tab
Back Up Nut
Anodized steel
Back Up Nut
Brass
Face Nut
Hex plastic face nut w/snap on rubber cap
Hex Chrome Face Nut
Face Nut
Hole Size
7/8"
Hole Size
7/8"
rated;
rated;
Ignition
15 Amp @ 12v DC
Ignition
10 Amp @ 12v DC
Solenoid
30 Amp @ 12v DC
Choke
7 Amp @ 12v DC
Solenoid
30 Amp @ 12v DC
MP39830 � CLAMSHELL
MP39832 � BULK 100 PCS/CTN
MP39100 � CLAMSHELL
DeSCrIpTIoN
MP39102 � BULK 100 PCS/CTN
Material
polyester
Length
Long: 1 1/8" maximum panel thickness
DeSCrIpTIoN
Terminal Type
6 Screw Tab
Material
polyester
Back Up Nut
Brass
Length
Long: 1 1/8" maximum panel thickness
Face Nut
Hex black plastic face nut
Terminal Type
5 Screw Tab
Hole Size
7/8"
Back Up Nut
Brass
Face Nut
Hex black plastic face nut
rated;
7/8"
Hole Size
Ignition
15 Amp @ 12v DC
rated;
Solenoid
30 Amp @ 12v DC
Ignition
15 Amp @ 12v DC
Choke*
7 Amp @ 12v DC
Solenoid
30 Amp @ 12v DC
*Terminal to power separately controlled choke circuit
Wire color codes
Red - Battery
Yellow w/ Red Stripe - Solenoid
Purple - Ignition
Purple w/ white stripe - Accessory
31
Black - Magneto Ground
Black w/ yellow stripe - Magneto
Yellow w/Black Stripe - Choke
