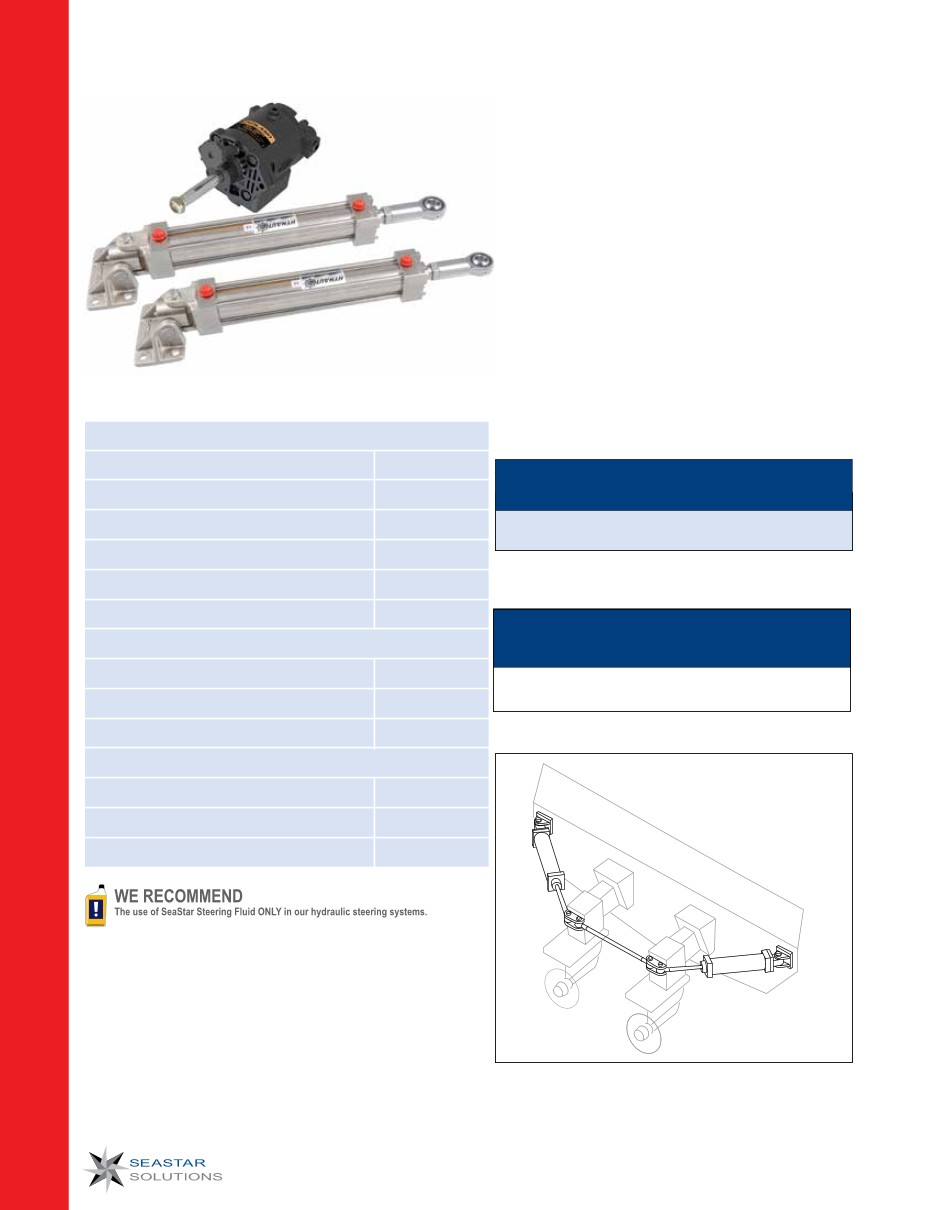

112
®
CAPILANO HEAVY DUTY
HYDRAULIC STEERING
SYSTEM:
This system is designed for sterndrive,
outboard and inboard boats requiring
external cylinders of substantial size and
strength. The K-5 cylinders are nickel plated
for aesthetics and protection against the
elements. System components are sold
separately. The required wing plates and
hardware are not available from SeaStar
Solutions. Systems can be selected using either the
easy-to-install Capilano 2-line systems (with variable-
displacement helm) or the traditional Hynautic 3-line
configurations.
HELM
DISTANCE — CYLINDER TO FURTHEST HELM
TYPE
40 Feet or Less
More Than 40 Feet
ALL
1/2" O.D. Copper Tubing
5/8" O.D. Copper Tubing
TUBING DIAMETERS:
CAPILANO
™
HEAVY DUTY
STERNDRIVE SYSTEM
CAPILANO COMPONENTS
Capilano 1275V Helm
External Sterndrive Cylinder
K-5-B (2 required)
Copper Tubing
1/2” or 5/8” OD
Fitting Kit (for 1/2” Copper Tubing)
HF5590 or
Fitting Kit (for 5/8” Copper Tubing)
Capilano Steering Fluid
Dexron II® ATF
OPTIONS
Add-A-Station Fitting Kit (1/2” tubing)
Add-A-Station Fitting Kit (5/8” tubing)
Helm Remote Fill Kit (through-dash)
SERVICE ITEMS
Steering Fluid
Dexron II® ATF
Helm Seal Kit
Cylinder Seal Kit
HELM OPTIONS:
HELM
NUMBER OF
RELIEF
HELM
DISPLACEMENT WHEEL TURNS
VALVE
PART#
RANGE
LOCK-TO-LOCK
SETTING
USING CAPILANO (VARIABLE DISPLACEMENT) HELM:
2.7-5.4 cu.in.
10.3-5.2
1000 PSI
STEERING - Sterndrive (Hydraulic)
See Page 148
