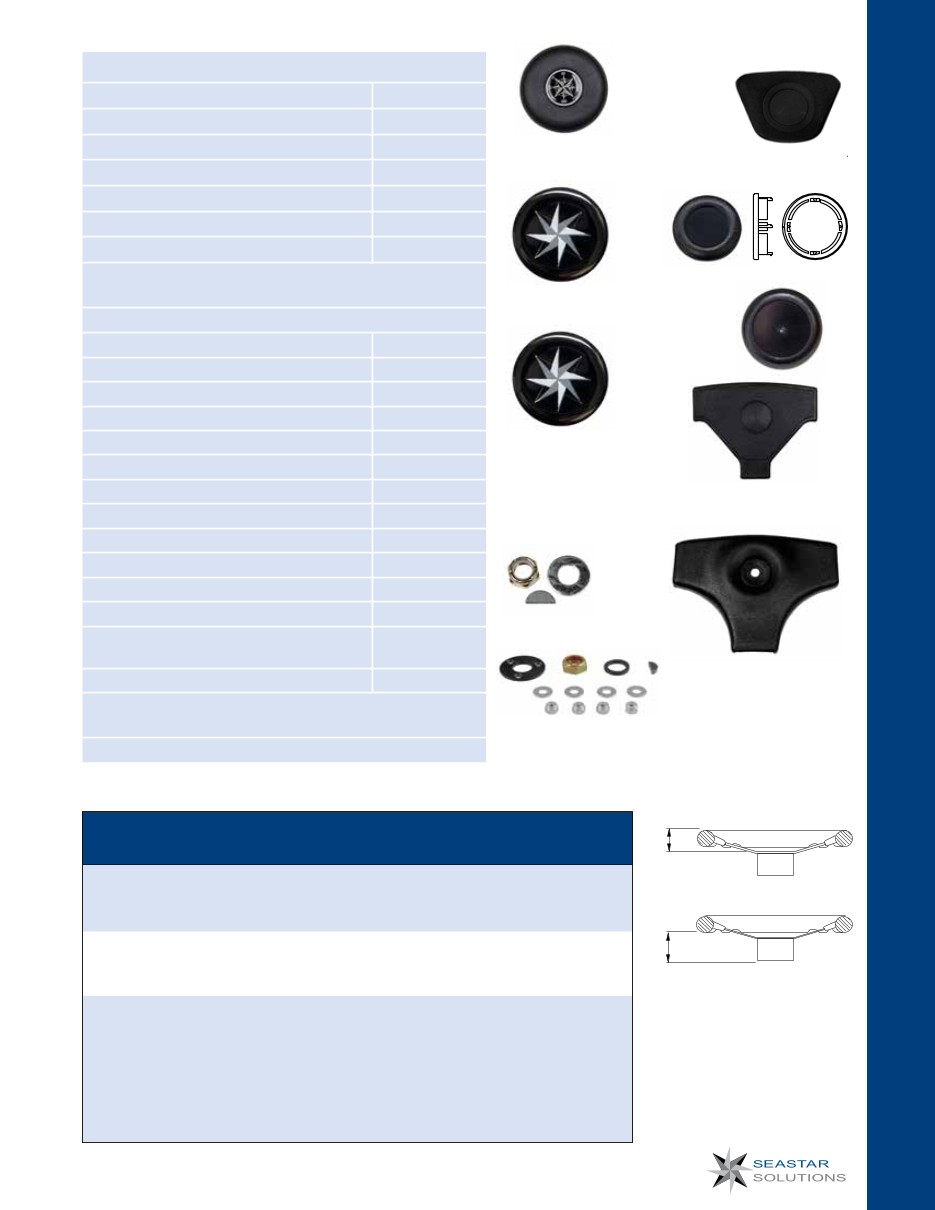

STEERING - Wheels
®
STEERING WHEELS
Ace (with flush center cap)
Champion (with center cover)
Champion (with center trim cap)
Stealth (with center pad)
Stealth (with center trim cap)
Talon (equidistant, with trim cap)
Viper (with round center trim cap)
* Equidistant spoke wheel — recommended for hydraulic
steering systems.
SERVICE ITEMS
Ace Center Cap (Plastic)
3876613 (A)
Champion Center Cover (Plastic)
3881611 (J)
Champion Trim Cap (Plastic)
3879414 (D)
Stealth Spoke Cover (Plastic)
3919912 (K)
Stealth Trim Cap (Plastic)
3879414 (D)
Talon Trim Cap (Polyurethane)
3878515 (C)
Viper Trim Cap (Plastic)
5202211P
Trim Cap, Beveled (Polyurethane)
Medallion with SeaStar Solutions Logo
3914016**(F)
Medallion with SeaStar Solutions Logo
7173910
Adapter 3/4” to 1” T
Adapter 3/4” to 1” S
Wheel Hardware Kit (Mechanical)
(Old #2745417P)
Service Kit for SeaStar Helms
** Included with all aftermarket wheels except Talon, which
includes a compass decal, and Viper which uses 7173910
DIMENSION
"A"
DIMENSION
"B"
STEERING WHEEL DIMENSIONS & DATA:
WHEEL
RIM
SPOKE
DIMENSION
CAP (PAD),
PART
N.M.M.A.
TYPE
SIZE
COLOR
“A”
“B”
MEDALLION
NUMBER
TYPE
3 SPOKE
Aluminum
Spokes, Soft Urethane or PVC Grip:
Viper *1
14"
Black
1.1"
2.2"
D, F
SW52022P 855022
6-SPOKE
Stainless Steel Spokes, Hard PVC Grip:
Talon *4
14"
SS
1.5"
2.6"
C
SW56811P 855026
3-SPOKE
Hard PVC Grip:
Champion *2 13.5"
Black
1.3"
2.3"
J, F
SW59201P 855029
Champion *1 13.5"
Black
1.6"
2.3"
D, F
SW59291P 855029
Stealth *2
14"
Black
1.3"
2.8"
K, F
SW59401P 855029
Stealth *1
14"
Black
2.1"
2.8"
D, F
SW59491P 855029
Ace *3
13"
Black
1.3"
2.3"
A, F
SW59691P 855029
NOTES:
*1 With removable center cap.
*2 With removable center cover.
*3 With integral molded center cover.
*4 Equidistant spokes (recommended
for hydraulic steering where “master”
spoke cannot be maintained.)
(J) 3881611
(Champion)
(D) 3879414
(Champion/Stealth)
(K) 3919912
(Stealth)
(C) 3878515
(Talon)
(F) 3914016
(Medallion)
(Mechanical
Helm Wheel
Hardware Kit)
WHEEL DIMENSIONS:
The dimensions shown in the
chart are reference dimensions.
Actual dimensions may vary
slightly.
(A) 3876613
(Ace)
7173910
(Viper)
5202211P
(Viper)
