Helms & Helm Fittings (Cont.)
| CSS Drop Down Menu by PureCSSMenu.com | < Previous Page|Next Page > |
136
®
• Large thread-on nut secures cable to helm.
• Conical plastic nut holds spent travel tube.
• Diecast bezel which can be either round one-piece
or oval 2-piece design.
• Older systems may have 2 helms (twin station).
Kit: None. Big-T is sold as components.
BIG-T®
Big-T

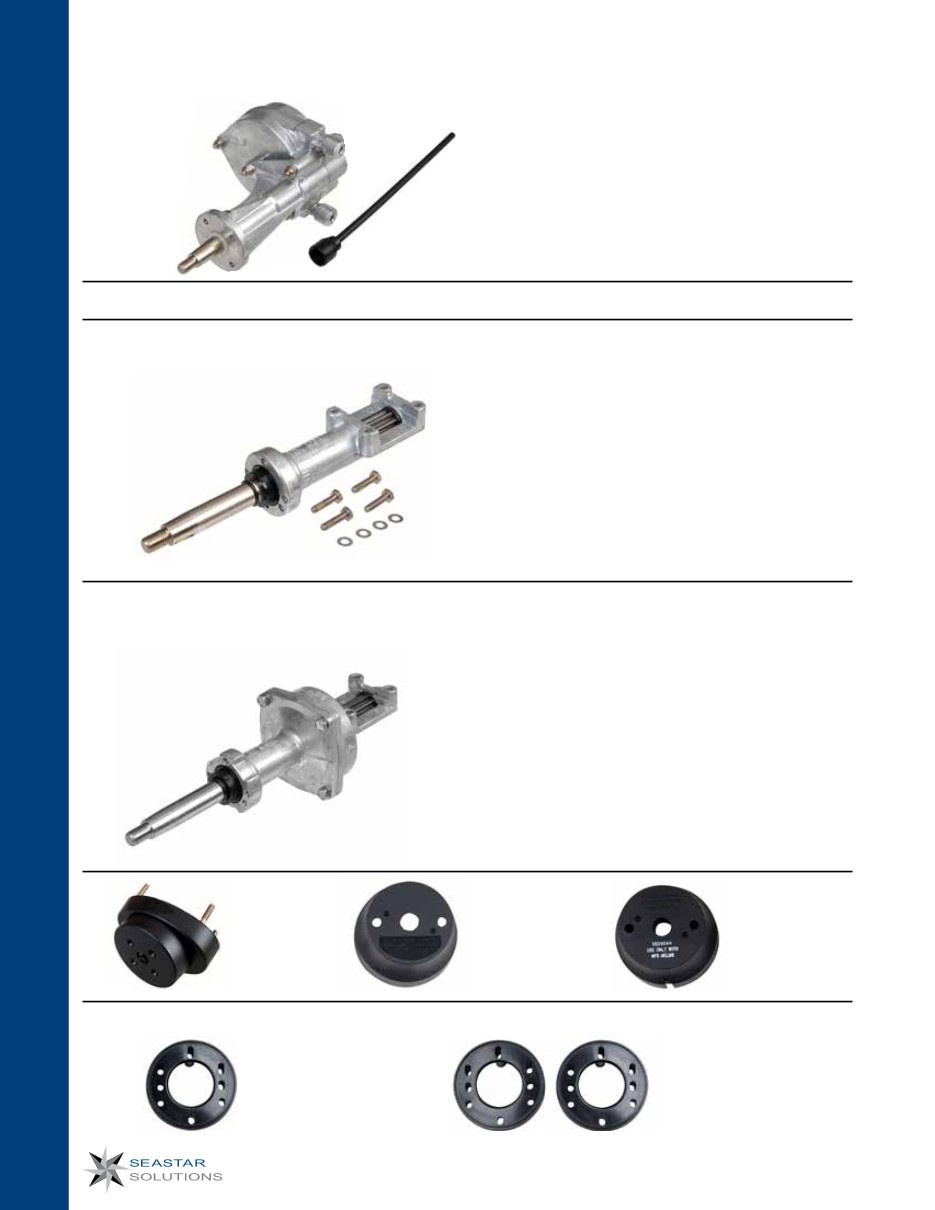

This is an overview of SeaStar Solutions RACK & PINION steering helms likely to be encountered.
• Four bolts and nuts secure cable’s rack housing to
helm.
• Helm/cable install as unit from back of dash.
• Helm requires current generation rack cables (will
not bolt up to older style cables).
• Dual cable has one rack housing with two cables
attached. Single helm works on both single and
dual cable applications (NFB recommended for
non-power assist outboards).
• One bezel is offered; angle to dash is changed by
adding wedges. See below:
Kit: SS141xx (Rack Single Cable);
HPS Rack is sold as components only.
THE RACK™ & HPS RACK™
(“BACK MOUNT” RACK)
• Four bolts and nuts secure cable’s rack housing to
helm.
• Helm has No FeedBack™ feature.
• Helm/cable install as unit from back of dash.
• Helm requires current generation rack cables (will
not bolt up to older style cables).
• Dual cable has one rack housing with two cables
attached. Single helm works on both single and
dual cable applications.
• One bezel is offered; angle to dash is changed by
adding wedges. See below:
Kits: SS151xx (NFB Rack Single Cable),
SS152xx (NFB Pro Rack Dual Cable).
NFB™ RACK & NFB™ PRO RACK™
(“BACK MOUNT” RACK)
RACK WEDGE KITS
(90° Bezel)
The Rack
HPS Rack
(90° Bezel)
NFB Rack
NFB Pro Rack
(10° Wedge Kit)
The Rack, HPS Rack,
NFB Rack & NFB Pro Rack
(20° Wedge Kit)
The Rack, HPS Rack,
NFB Rack & NFB Pro Rack
STEERING - Helms
HELM VISUAL IDENTIFICATION GUIDE:
This is an overview of SeaStar Solutions ROTARY steering helms likely to be encountered.
