STEERING - Hydraulic Service Tools

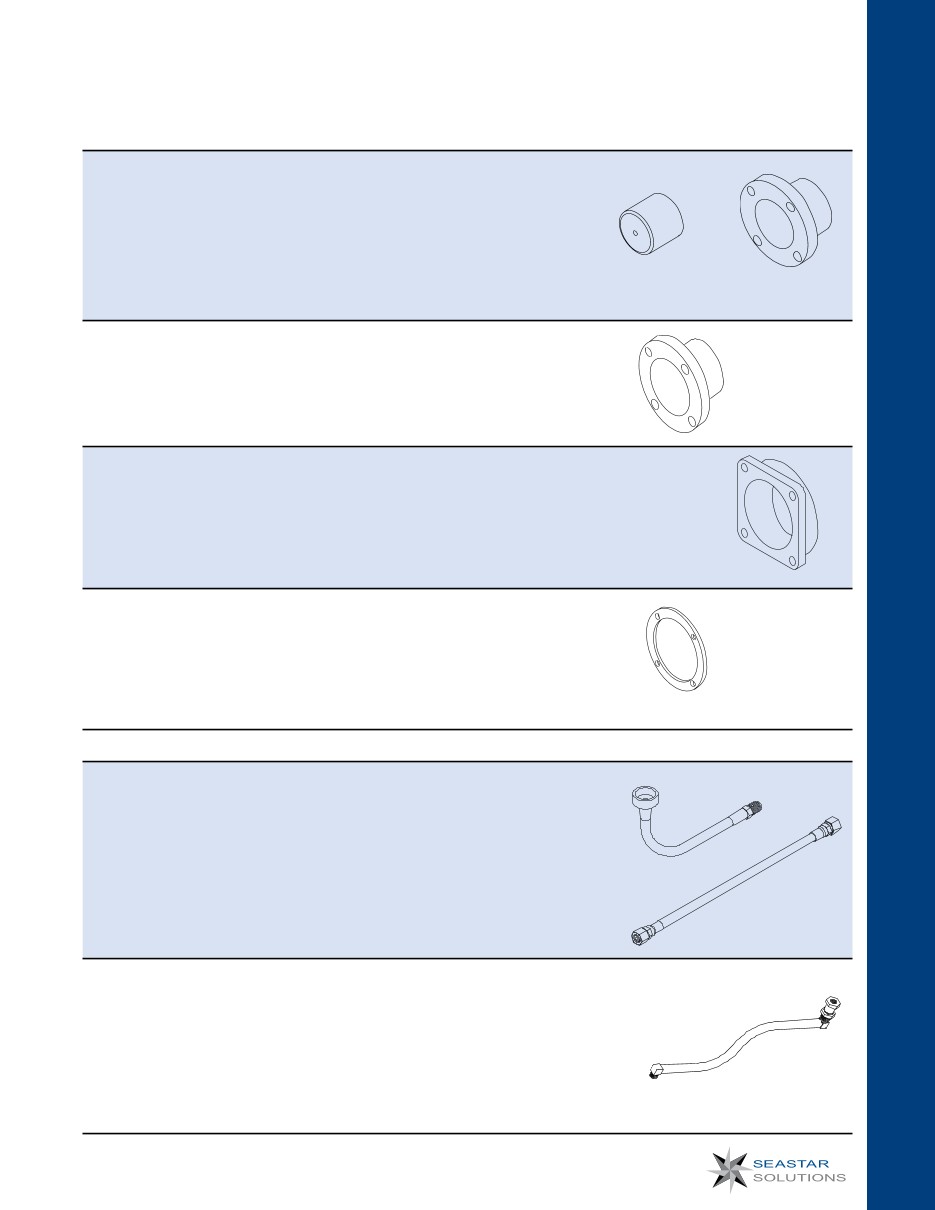

DASH HOLE CUTOUT FIXTURES:
These tools simplify dash modifications for BayStar and SeaStar upgrades. They are designed to help you install
these helms into dashboards with mechanical steering cutouts, older (square flange) SeaStar helms and even
dashes without pre-cut holes.
DASHES WITH RACK & PINION HOLES:
Drill Guide
.............................................................................
(Use with 3” hole saw to enlarge an existing 2” rack & pinion dash cutout to 3” diameter;
use with HA5466, listed below.)
Round Drill Jig (BayStar)
.........................................................
Round Drill Jig (SeaStar)
..........................................................
(Requires a 3” hole in dash; allows drilling of mounting bolt holes for SeaStar front mount
helms; use with HA5465, listed above).
DASHES WITH ROTARY STEERING HOLES:
Round Drill Jig (BayStar)
.........................................................
Round Drill Jig (SeaStar)
..........................................................
(Requires a 3-1/4” hole in dash [existing cutout size for most SeaStar Solutions rotary
steering]; allows drilling of mounting bolt holes for SeaStar front mount helms.)
DASHES WITH PRE-1991 SEASTAR HOLES
(HELM WITH SQUARE FLANGE):
Square Drill Jig
........................................................................
(Requires 4-1/2” hole in dash; allows drilling of mounting bolt holes for SeaStar Sport Tilt
Helms or HA5418 Backplate Kit.)
DASHES REQUIRING REINFORCEMENT:
Backup Ring
............................................................................
(Install behind dash to increase helm mounting rigidity when required. Ring not required
when using HA5417 or HA5418.)
OTHER HANDY ITEMS:
BLEEDING SEASTAR SYSTEMS:
SeaStar Helm Fill Kit
...............................................................
(Includes hose with screw cap which fits SeaStar or equivalent oil bottles. Also includes
push pin for venting/resealing bottle. Allows for clean bleed when used properly.)
SeaStar Power Steering Purge Kit
...........................................
(25’ hose to connect steering cylinder to reservoir for bleeding.)
SeaStar Power Steering Purge Kit
...........................................
(Central bleeding location — no need to run hoses to reservoir. Can only be used with
Power Steering Cylinders made after October, 2005.)
REMOTE FILL FOR SEASTAR HELMS:
SeaStar Helm Remote Fill Kit
..................................................
(Allows relocation of your SeaStar helm fill to either a more convenient or a more concealed
location. This kit can be used with ALL SeaStar helms.)
