CONTROLS - Dual Function
®
OUTBOARD DS UNIT:
The DS unit is designed for those boaters that like
using one lever to do both throttle and shift in their
dual station boat. The Station Selector allows smooth
operation of dual funtion controls in a dual station
application.
APPLICATION:
The dual function DS unit is great for dual station
boats without a lot of room on the dash or if you
wanted to use side mounted controls in two stations.
Just put both levers in neutral, turn the selector switch
and you have changed stations.
SeaStar Solutions recommends that you only use the
33C cable part number CCX633xx
with the DS unit.
FEATURES:
Allows dual function mechanical controls to be
used in a dual station boat.
Side mount controls can now be used in dual
station boats.
You only require one station selector for both a
single engine or dual station boats.
Using the recommended
control
cables allow smooth control operation.
SINGLE ENGINE OUTBOARD
QUANTITY
PART NUMBER
DESCRIPTION
NOTES
1
DS GEAR UNIT
TWO CABLES IN ONE CABLE TO SHIFTER
1
STATION SELECTOR UNIT
ONE CABLE FROM UNIT TO GEAR DS UNIT
1
DS THROTTLE UNIT
TWO CABLES IN ONE CABLE TO THROTTLE
1
CABLE TO GO FROM SELECTOR TO GEAR DS UNIT
XX = CABLE LENGTH IN FEET
1
CABLE FROM STATION 1 TO GEAR DS UNIT
XX = CABLE LENGTH IN FEET
1
CABLE FROM STATION 2 TO GEAR DS UNIT
XX = CABLE LENGTH IN FEET
1
CABLE FROM GEAR UNIT TO TRANSMISSION
XX = CABLE LENGTH IN FEET
1
CABLE FROM STATION 1 TO THROTTLE DS UNIT
XX = CABLE LENGTH IN FEET
1
CABLE FROM STATION 2 TO THROTTLE DS UNIT
XX = CABLE LENGTH IN FEET
1
CABLE FROM THROTTLE UNIT TO ENGINE
XX = CABLE LENGTH IN FEET
1 engine adapter kit for the control cables unless provided by the engine manufacturer
1 DUAL ACTION CONTROL PER STATION = 2 TOTAL CONTROLS THAT MUST USE 3300/33C
STYLE CONTOL CABLES CCX633xx
DUAL ENGINE OUTBOARDS
QUANTITY
PART NUMBER
DESCRIPTION
2
DS GEAR UNIT
1
STATION SELECTOR UNIT
2
DS THROTTLE UNIT
2
CABLE TO GO FROM SELECTOR TO GEAR DS UNITS
1
CABLE FROM PORT STATION 1 TO GEAR DS UNIT
1
CABLE FROM STARBOARD STATION 1 TO GEAR DS UNIT
1
CABLE FROM PORT STATION 2 TO GEAR DS UNIT
1
CABLE FROM STARBOARD STATION 2 TO GEAR DS UNIT
2
CABLE FROM GEAR DS UNITS TO TRANSMISSIONS
1
CABLE FROM PORT STATION 1 TO THROTTLE DS UNIT
1
CABLE FROM STARBOARD STATION 1 TO THROTTLE DS UNIT
1
CABLE FROM PORT STATION2 TO THROTTLE DS UNIT
1
CABLE FROM STARBOARD STATION 2 TO THROTTLE DS UNIT
2
CABLE FROM THROTTLE DS UNITS TO ENGINES
2 engine adapter kit for the control cables unless provided by the engine manufacturer
1 DUAL ACTION TWIN LEVER CONTROL PER STATION = 2 TOTAL CONTROLS THAT MUST USE 3300/33C
STYLE CONTROL CABLES CCX633xx
SeaStar Solutions
Recommends Using
Cables With This
Control

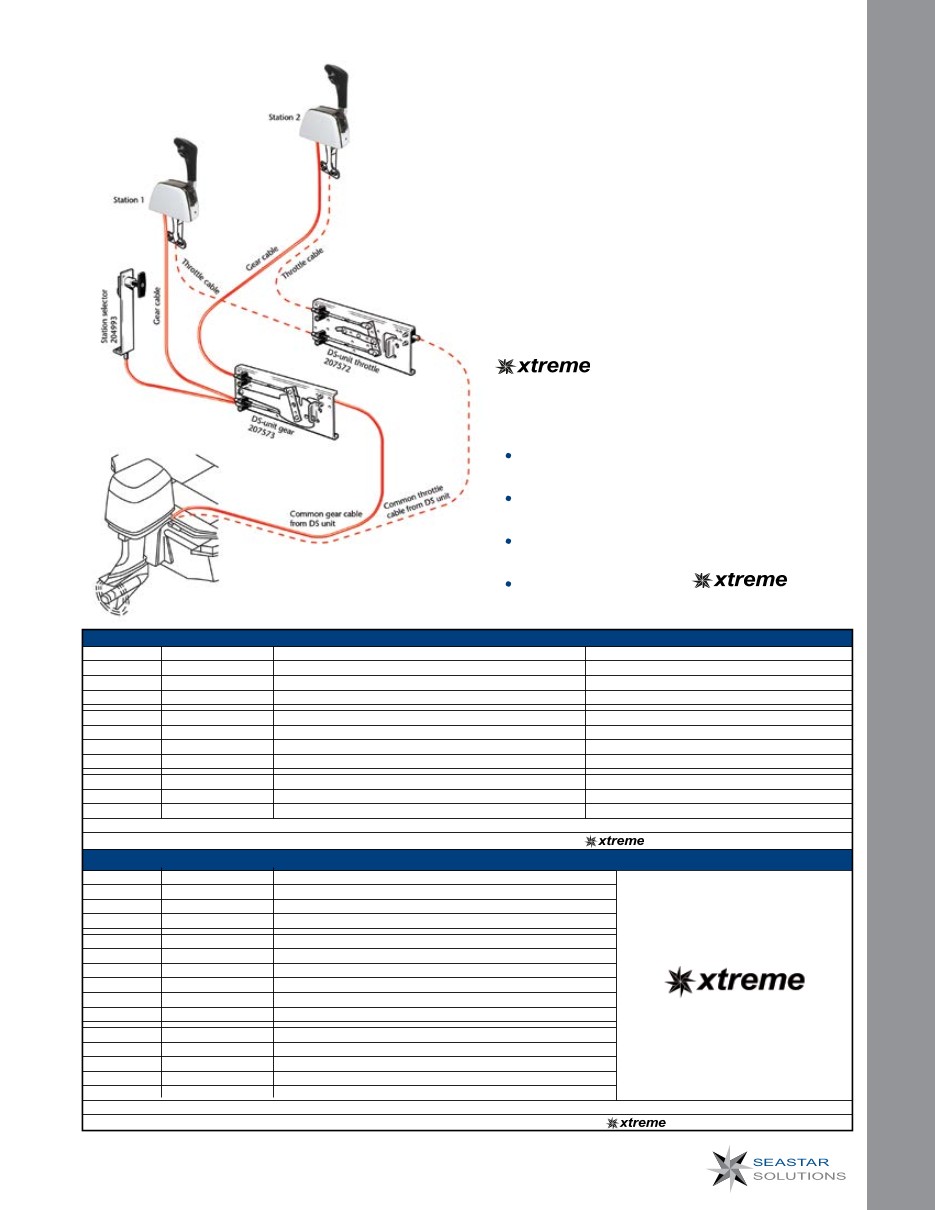

SINGLE ENGINE PICTURED
