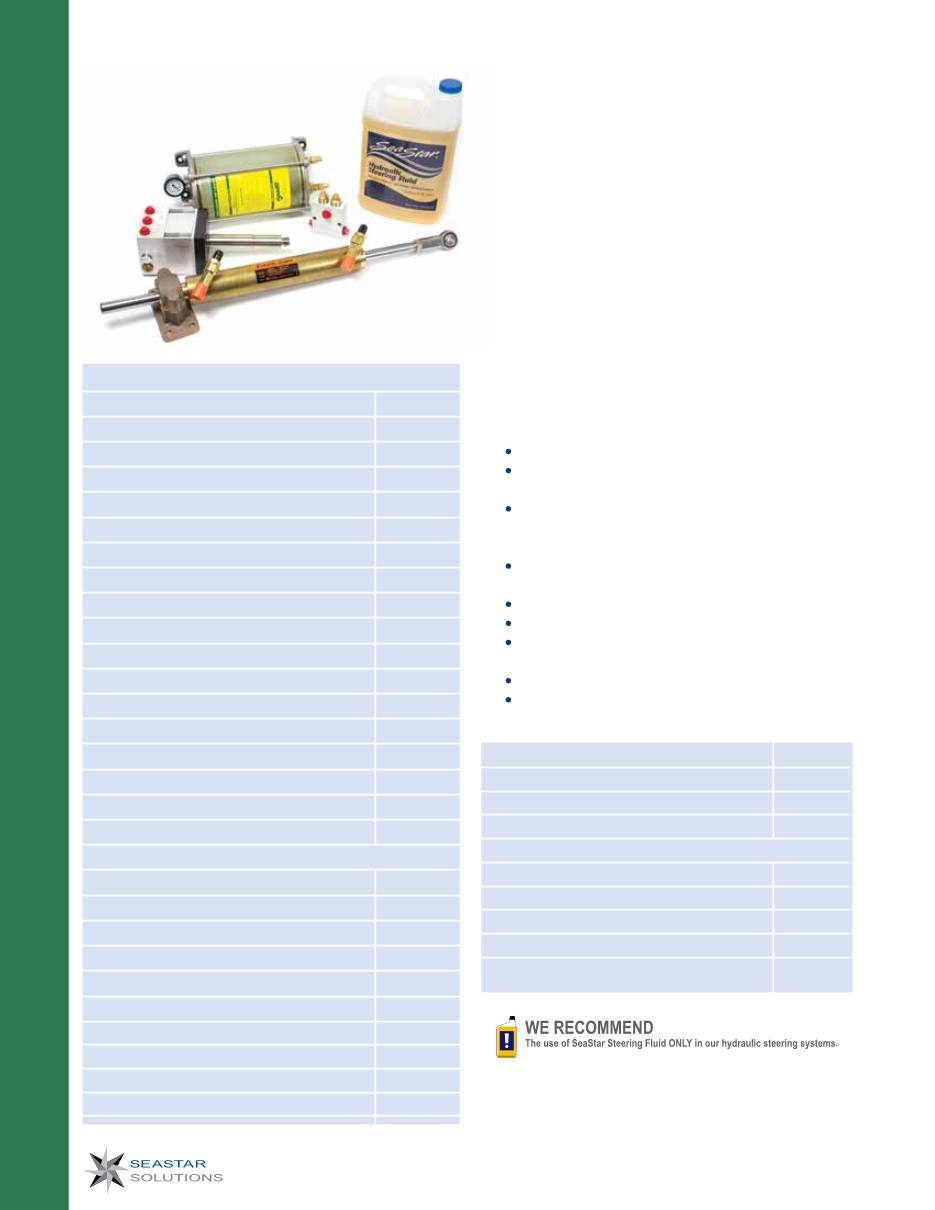

HYNAUTIC 3-LINE HEAVY DUTY
HYDRAULIC STEERING SYSTEM:
SeaStar offers rugged 3-line Hynautic Heavy Duty
steering systems for most work and pleasure
vessels up to 70 feet.
Heavy Duty helms combine one or two
bi-directional axial piston pumps with pilot check
and make-up check valving. The result is a unit
which prevents rudder feedback, is very efficient
(even at low RPM), and is immediately adaptable
to multi-station use.
A wide choice of helm displacements and
cylinder configurations make it easy to spec a
system which can handle a variety of large boat
performance requirements and accommodate
most user preferences.
FEATURES:
Low friction heavy duty hydraulic steering.
Helm/cylinder combinations for most inboards.
Marine grade materials.
Heavy duty helms available in three displacements,
to accommodate most applications and user
preferences.
Helms available with 1” straight shaft or
3/4” tapered. Mount facing any direction.
Quick air purge relief valve.
Fluid fill at remote reservoir.
Heavy duty brass cylinders. Two-axis articulation.
Easy installation for single or dual rudder vessels.
Meets or exceeds applicable standards.
Accepts most steering wheels.
COMPONENTS
Hynautic H-20 helm (1” straight shaft)
H-21 or
Hynautic H-20 helm (3/4” tapered shaft)
H-25 or
Hynautic H-40 helm (1” straight shaft)
H-42 or
Hynautic H-40 helm (3/4” tapered shaft)
H-42-02 or
Hynautic H-40 helm (1” straight shaft)
H-41 or
Hynautic H-40 helm (3/4” tapered shaft)
H-20 Fittings Kit for Main Station
H-40 Fittings Kit for Main Station
Inboard Cylinder
Reservoir - Standard (2 quart)
Relief Valve (950 PSI)
Relief Fittings (1150 & 1175-21-1)
Relief Fittings (1175-42-1 & up)
Copper Tubing
1/2” or 5/8” OD
Fitting Kit (for 1/2” Copper Tubing)
HF5590 or
Fitting Kit (for 5/8” Copper Tubing)
Hose Kit for Copper Tubing (2 hoses)
SeaStar Oil (1 Gallon)
OPTIONS
Pivot Mount Inboard Cylinder
Dual Cylinder Hose 2’ (.6m)
Dual Cylinder Hose 3’ (.9m)
Dual Cylinder Hose 4’ (1.2m)
Dual Cylinder Hose 5’ (1.5m)
Dual Cylinder Hose 6’ (1.8m)
Relief Valve (500 PSI)
Reservalve (500 PSI, top read, 3/8)
Obsolete
Reservalve (500 PSI, top read, 3/8, w/pump)
Obsolete
Reservalve (500 PSI, top read, 5/16, w/pump)
Obsolete
Reservalve (950 PSI, top read, 5/16)
Obsolete
Reservalve (950 PSI, frt.read, 5/16, w/pump)
Obsolete
H-20 Fittings Kit for Second Station
H-40 Fittings Kit for Second Station
SERVICE ITEMS
Relief Valve (500 PSI)
Reservalve (500 PSI, top read, 3/8)
Obsolete
Reservalve (500 PSI, top read, 3/8, w/pump)
Obsolete
Reservalve (500 PSI, top read, 5/16, w/pump)
Obsolete
SeaStar Oil (1 Gallon)
STEERING - Inboard (Hydraulic)
See Page 148
