1976 Evinrude 70673D Tell Tale Install Placement?

[Vargrklaw]

Hi, all. Back to working on our older boat with an Evinrude 70673D after winter storage. Doing some work that I'd planned to before and one of those is adding a tell tale. I know there's guides somewhere on the internet on where to drill and tap for the fitting, but I'm having a hard time getting a consistent answer of where and can't find good pictures showing it. I'd really love to see some that are top down, if anyone has those. I already have the water outlet that goes in the cowl and the plastic 90 degree elbow to put in the block, just need to know where.



[racerone]

Have you tested the overheat warning horn ?



[Vargrklaw]

Yep, warning horn works when grounded. And I know, I've read a few times on the forums that if that works, a tell tale isn't particularly needed, but I want to install it for peace of mind. Being able to look back and see the water stream right after startup sounds like a good thing to me with no downsides



[Vargrklaw]

Bump. Anyone have pics on where to put a tell tale fitting?



[kevinj]

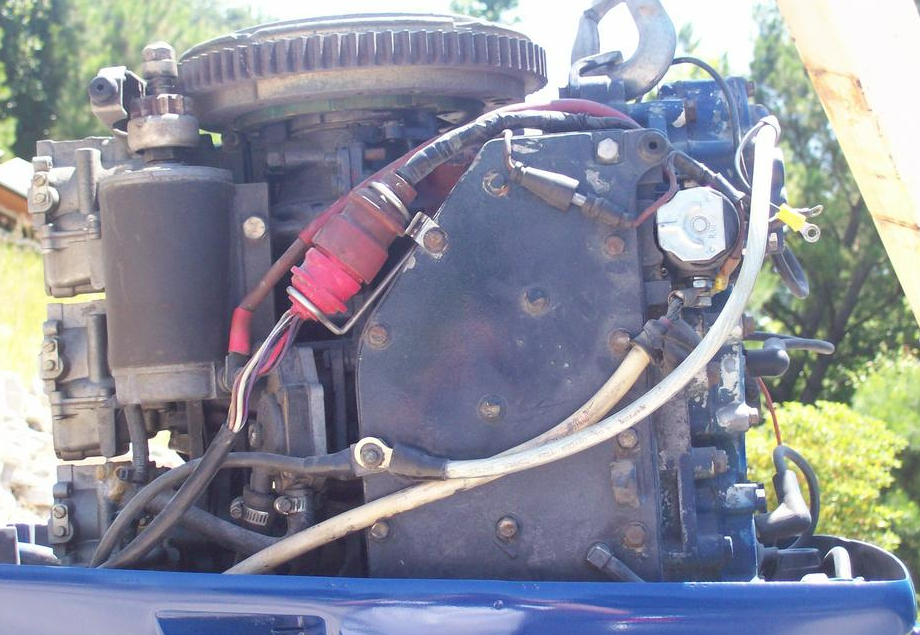

This pic is from a 1978 70HP. You can see the 90* fitting for the telltale is tapped into the exhaust housing cover about even with the spark plug for the lower cylinder, about 1" in front of the rear bolt.



[Vargrklaw]

I haven't seen the tell tale down there before, only on top of the block or head. Is that a better spot for it?



[mark.fitz]

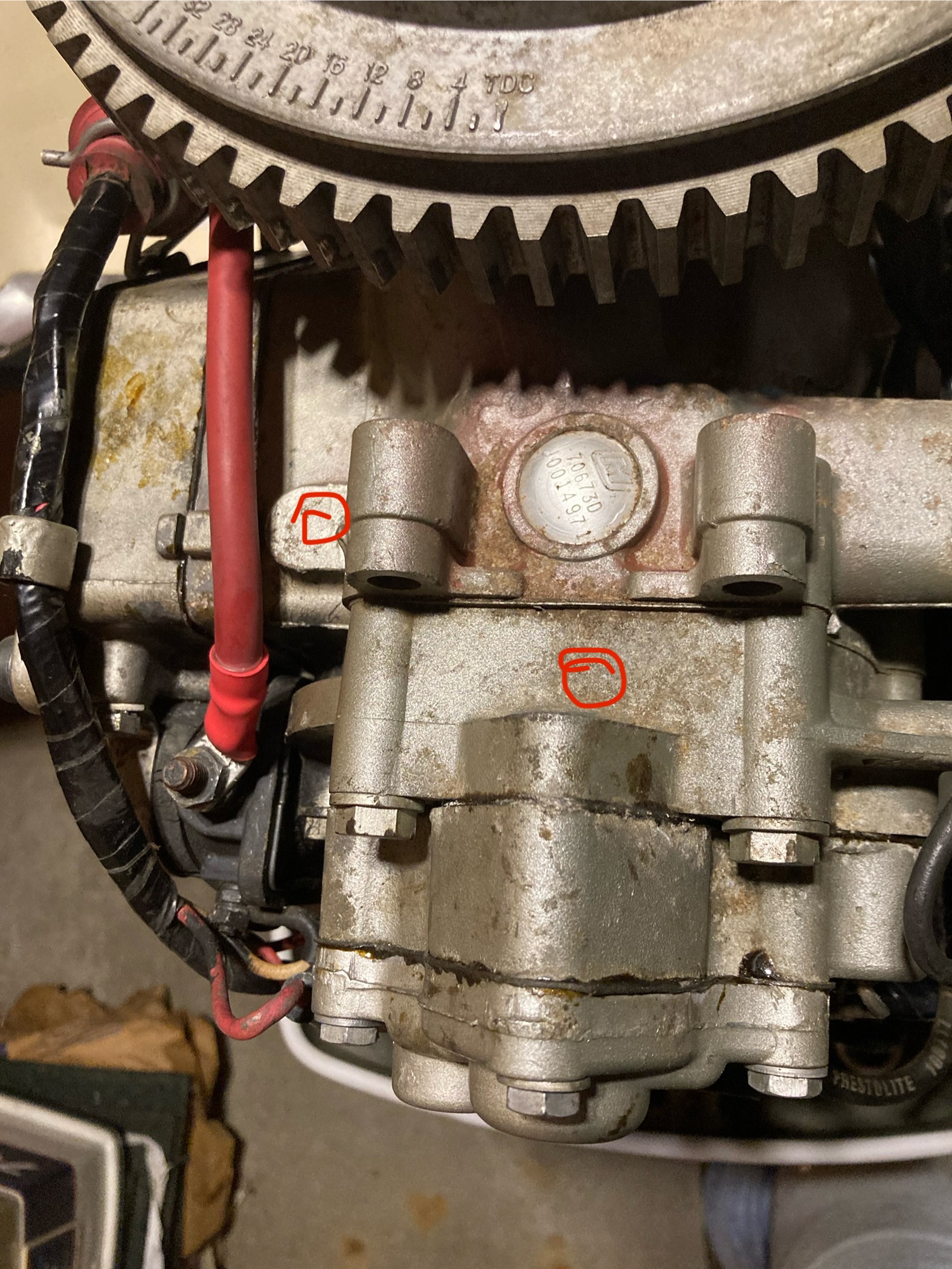

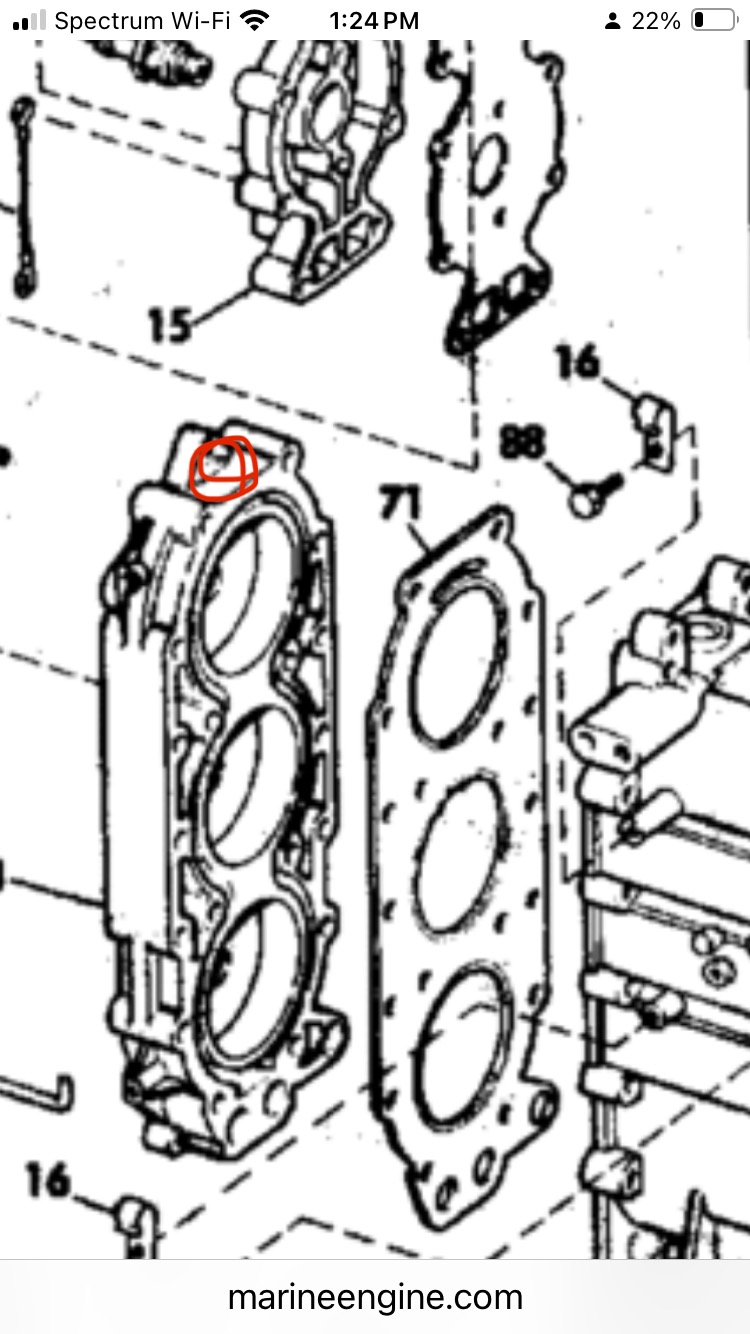

I haven't seen the tell tale down there before, only on top of the block or head. Is that a better spot for it?
