Chrysler 440 1978 - ignition problem

M

meltingpot87

New member
Dear All,

Yesterday, my 440 engine ran for 1,5h (not continuously, with a few stops here and there on the river) without any problem.
Suddenly, trying to start it, no more firing of the spark plugs.
We took off one spark plug to see it firing and no spark at all.

Any idea on what could cause that?

It's and old system I'm not familiar with, have a look at the pictures.


Thanks in advance!!



Cheers IMG_20180901_193640_LIA.jpgIMG_20180901_193402_LIA.jpgIMG_20200624_114654S.jpg

Back in 1978, Chrysler used the mechanically advancing distributors with the VR (variable reluctor) style ignition triggering system.
Great system, by the way.


This would be the module for that unit.

shopping


You may have a bad module.


.

Last edited:
Hey Rick,

Thanks for your quick reply!
Indeed, on my engine, the back of this part is "leaking" the kind of yellow honey paste which is behind the module.

I guess it might be a good indication of a bad module?

Any idea where I can find a new one?
I m living in Europe btw..

Cheers

Jeremy


Attachments

  • IMG_9646a.jpg
    623.4 KB · Views: 79
Last edited:
..................
meltingpot87 said:
Hey Rick, Thanks for your quick reply!

Indeed, on my engine, the back of this part is "leaking" the kind of yellow honey paste which is behind the module.
Yes, that would be your "yellow/honey paste spark enhancer juice".

I guess it might be a good indication of a bad module?
On a serious note....... yes, my guess would be a bad module.

Any idea where I can find a new one?
I m living in Europe btw..

Do a Google search for Chrylser marine VR ignition system module.
I doubt that the automotive version wire harness socket is the same.
Nor would it be listed as "ignition source protected"...... even while the electronics are cast in epoxy.

Cheers

Jeremy
Click to expand...

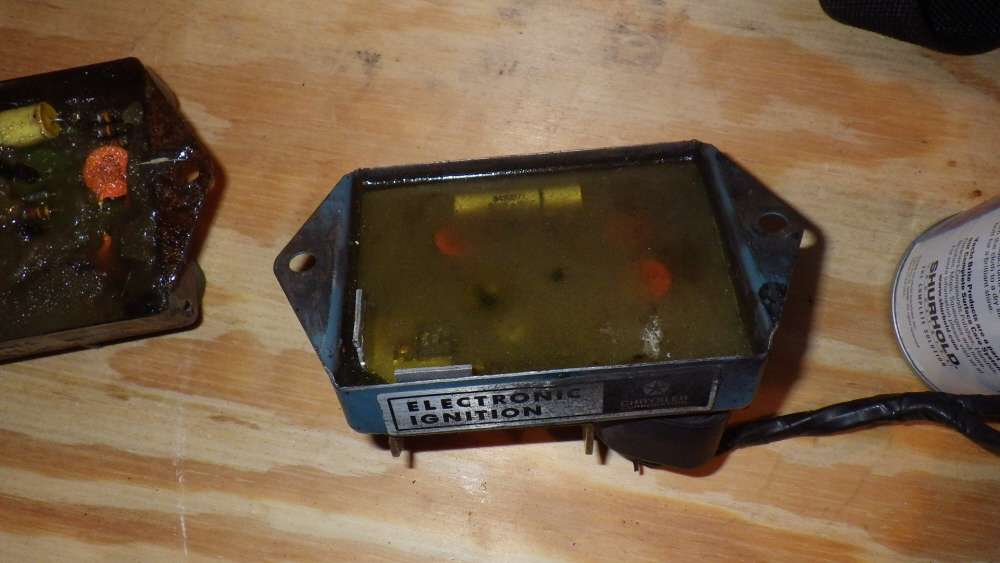

FWIW, Just the fact it leached out doesn't necessarily qualify it as a failed unit electronically. These ECMs have been known to do that. I have one that was in a box with another on a shelf for years that leached just sitting there. You'll notice the picture it's been working it's way down as it was packed. The other unit is just fine. Both were good used ECMs from the '70s.

Check all connections and continuity including for the distributor pickup. Grounding the ECU is very important, EVEN if you have to scrape the paint off. Don't over look the oil pressure sensor if it has it.

Not to throw you a curve but look at the 7 digit Chrysler PN number on you Amazon link.

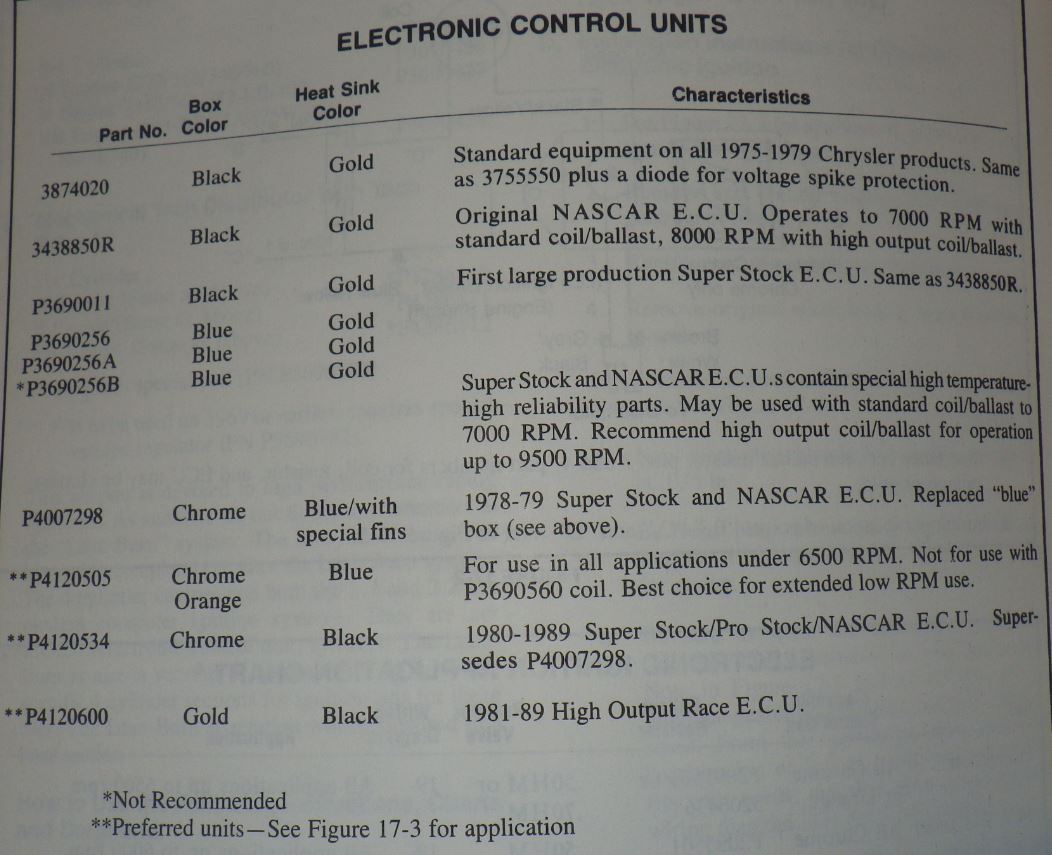

You'll see that number on this chart. I can't tell you what may be the difference ……….

Hey Daves,

Thanks for giving more about that!

So, to you, what would cause the engine not to give anymore spark in the plugs, but after boating for 1h30 without problem?
As it's not the first time it happened, it looks recurent to have an ignition prob after some boating time..

My question is, if the connections and continuity are not good, would it work in the beginning but not afterwards?

Thanks in advance

Cheers

Your Chrysler ignition system is VR.............. VR = variable reluctor.

The triggering wheel is magnetically charged at each tooth.

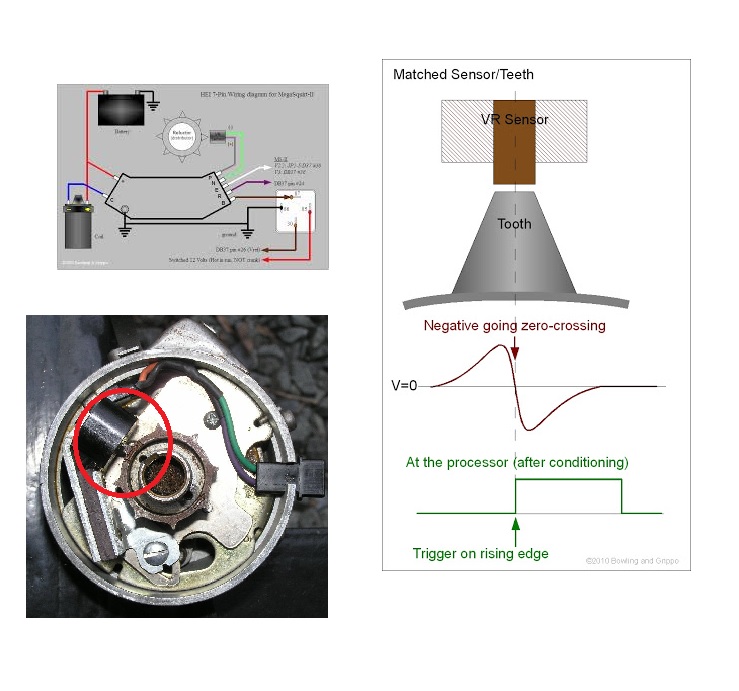

Has anyone bridged the gap between the reluctor teeth and the sensor with a conductive instrument?
(see red circle below)

Is there a ballast resistor in the loop?

Have you replaced the ignition coil?



Chrysler VR system.jpg

This FREE FSM download link is for small blocks (LM318-LM360). I believe the ECU part is basically if not even the same for an rb M440. There is also an older 440 manual available there but I don't think it covers electronic ignition.
Check the "I'm not a robot" box and follow the instructions.....
[FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]https://www.manualslib.com/download/1007590/Chrysler-Lm-318.html


"My question is, if the connections and continuity are not good, would it work in the beginning but not afterwards?"
[/FONT]​
Please understand I am not saying the ECU isn't your problem.
As little as a corroded wire or loose connection or tachometer issue can lead to fail. As an example, in the old automotive systems we have issues with bulk head connectors (engine compartment to interior). Intermittent issues may be harder to solve.

Some automotive info here may help you diagnose only. The two diagrams here are bare bones basic wiring for the 50 year old mopar system. The section after is not relevant.………
[FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]
https://www.allpar.com/fix/electronic-ignition.html

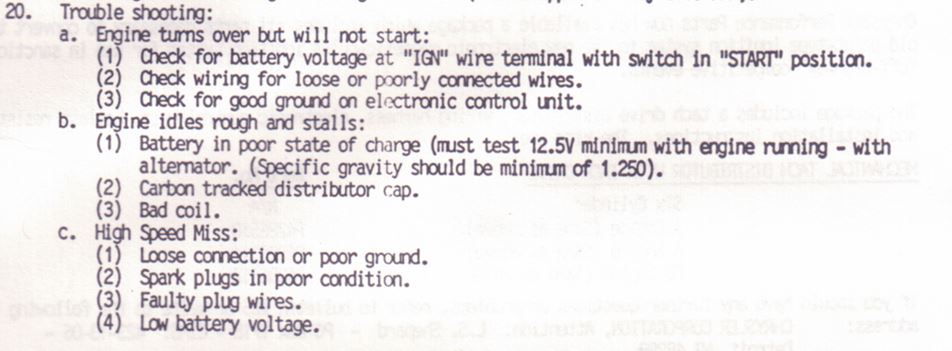

A basic trouble shoot guide...........
