TILT-TRIM MOTOR REVERSING RELAYS
TECH TIPS

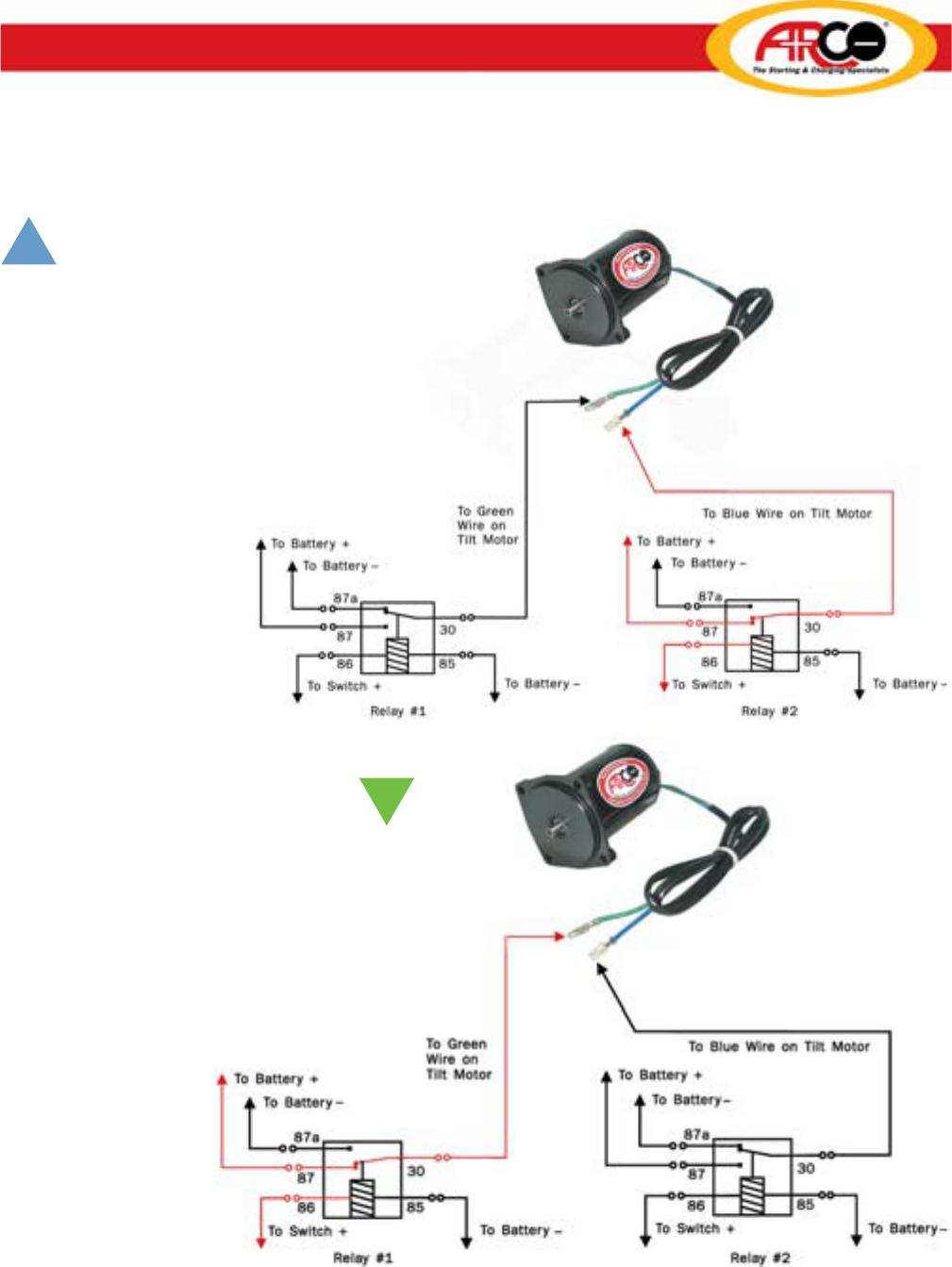

PERMANENT MAGNET FIELD MOTORS
Motor Running In The Down Direction
When the tilt-trim switch is moved to
the down position, relay #1 activates
supplying positive voltage to the green
wire by connecting terminal #87
to terminal #30.
Relay #2 remains in the off position.
Terminal #87a and #30 are connected when the relay
is in the off position. This allows the blue wire to be
connected to battery negative.
Motor Running In The Up Direction
When the tilt-trim switch is moved to the up position, relay
#2 activates supplying positive voltage to the blue wire by
connecting terminal #87 to terminal #30.
Relay #1 remains in the off position. Terminal #87a and #30
are connected when the relay is in the off position.
This allows the green wire to be connected to battery
negative.
