TILT-TRIM MOTOR SOLENOIDS
WIRE WOUND FIELD MOTORS

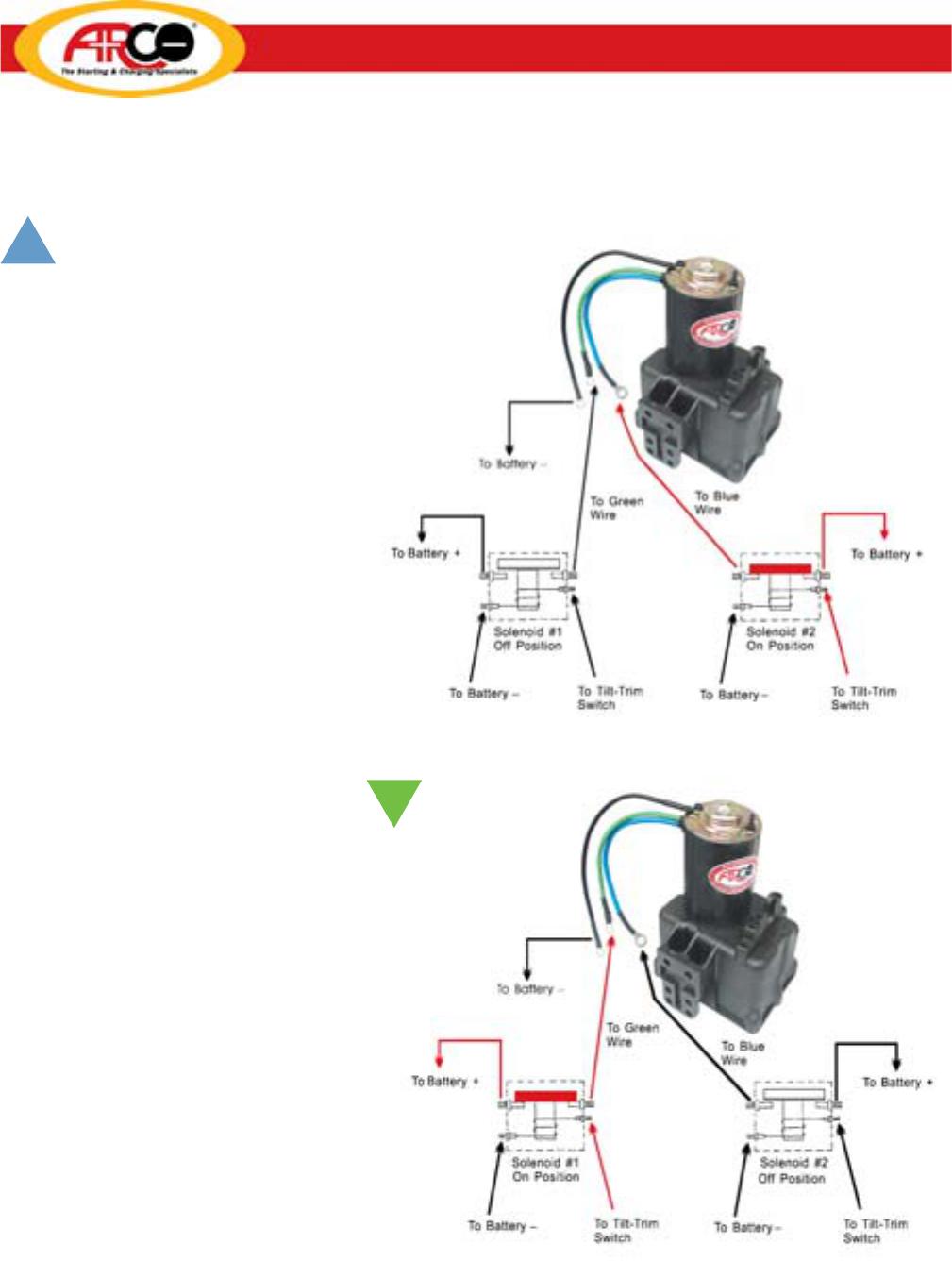

Motor Running In The Up Direction
When the tilt-trim switch is in the up, position solenoid #2
is energized and battery positive voltage is supplied to the blue wire
making the motor run in the up direction. This raises the outdrive or
outboard motor.
Motor Running In The Down Direction
When the tilt-trim switch is in the down position,
solenoid #1 is energized and battery positive voltage
is supplied to the green wire making the motor run
in the down direction. This lowers the outdrive or
outboard motor.
