SeaStar Steering (Side Mount Cylinder) (Cont.)
| CSS Drop Down Menu by PureCSSMenu.com | < Previous Page|Next Page > |
58
®

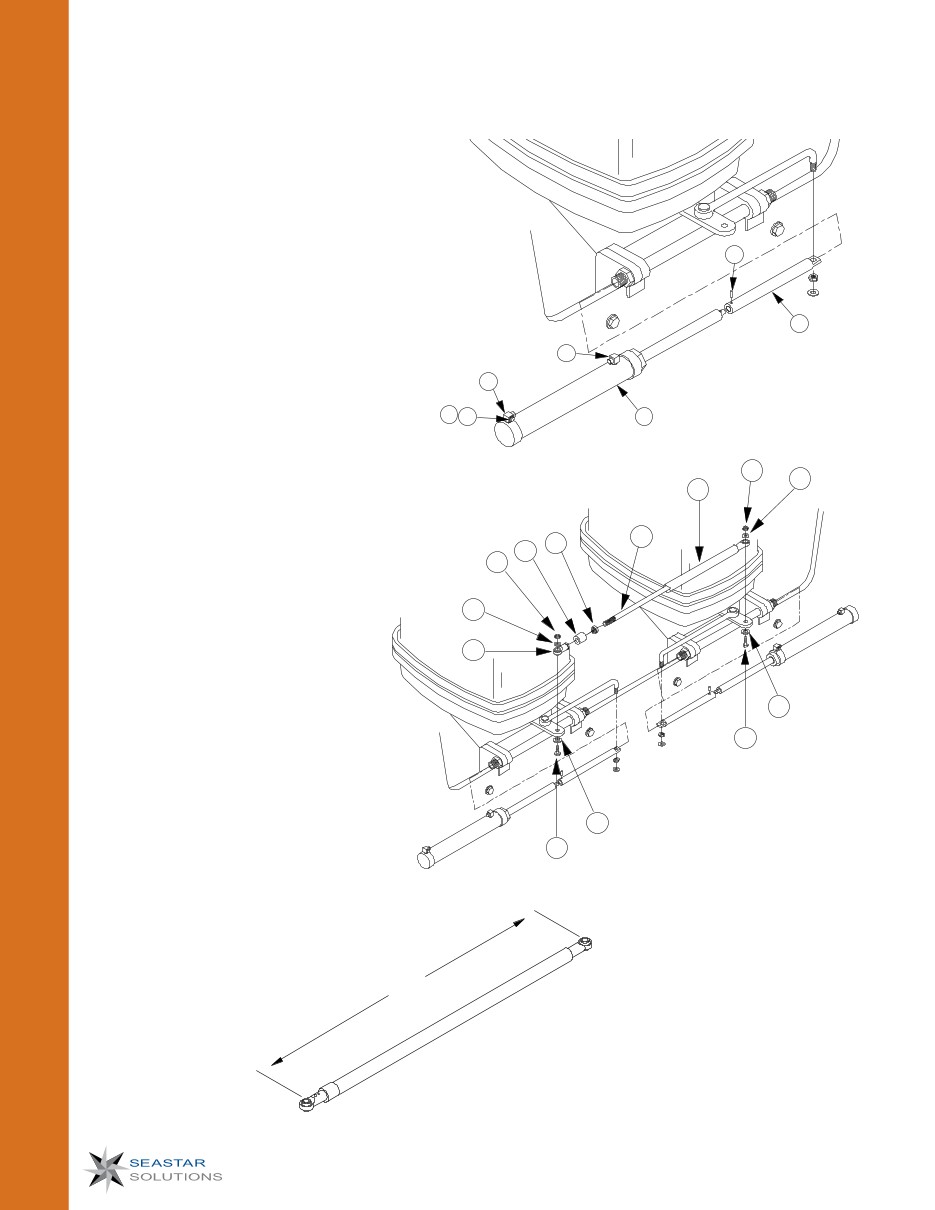

HC5370-3 SIDE MOUNT
CYLINDER PARTS
(WITH STANDARD TIE BAR:)
MINIMUM ENGINE CENTER DISTANCE: 26" (660mm)
MAXIMUM ENGINE CENTER DISTANCE: 36" (914mm)
3
2
1
4
6
5
4
61
54
53
59
60
58
57
53
54
54
56
54
56
ENGINE CENTER DISTANCE
SIDE MOUNT CYLINDER
TIE BAR KIT
(ALL ENGINES)
SIDE MOUNT CYLINDER TIE BAR KIT (HO5009)
Replacement parts for the HO5009 tie bar kit
are listed below.
ITEM
P/N
QTY
DESCRIPTION
53
N/A
2
Nut 3/8" NF Nylock
54
N/A
4
Washer 3/8" dia.
56
N/A
2
Screw 3/8" NF x 1-3/4" Hex Head
57
N/A
1
Stringer Tube
58
N/A
1
Threaded Rod with Ball Joint
59
N/A
1
Plastic Cap
60
N/A
1
Nut 1/2" NF Nylock
61
1
Ball Joint
(USE ENGINE MANUFACTURER’S LINK ARM.)
DUAL ENGINES
CYLINDER TIE BAR KITS & PARTS
SINGLE ENGINE
CYLINDER/CONNECTION PARTS
SIDE MOUNT CYLINDER (HC5370-3) PARTS LIST
ITEM
P/N
QTY
DESCRIPTION
1
1
Side Mount Cyl. Tube & Gland Ass’y.
2
1
Extension Rod — Stainless Steel
3
1
Pin - Stainless Steel
4
1
Hose/Bleeder Tee Fitting Set (2)
5
NOT AVAIL.
2
Bleed Screw (use HF5520)
6
NOT AVAIL.
2
Washer for Bleed Screw (use HF5520)
(USE ENGINE MANUFACTURER’S LINK ARM.)
STEERING - Outboard (Hydraulic)
